Introduction

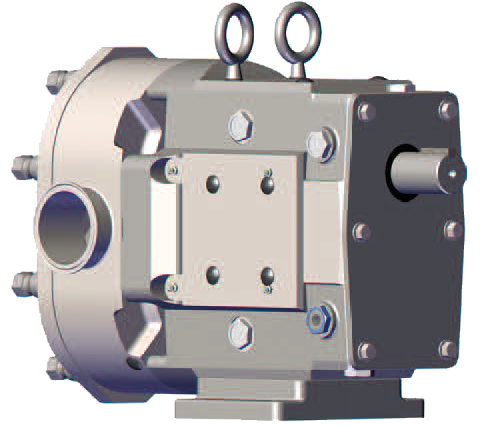

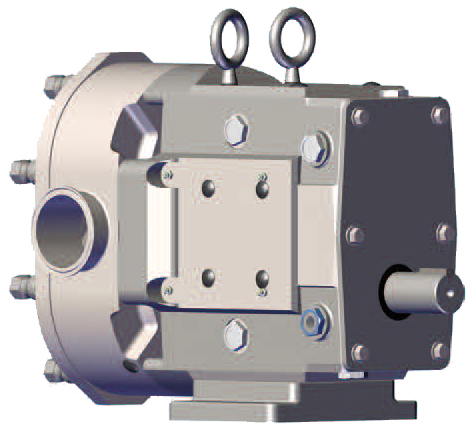

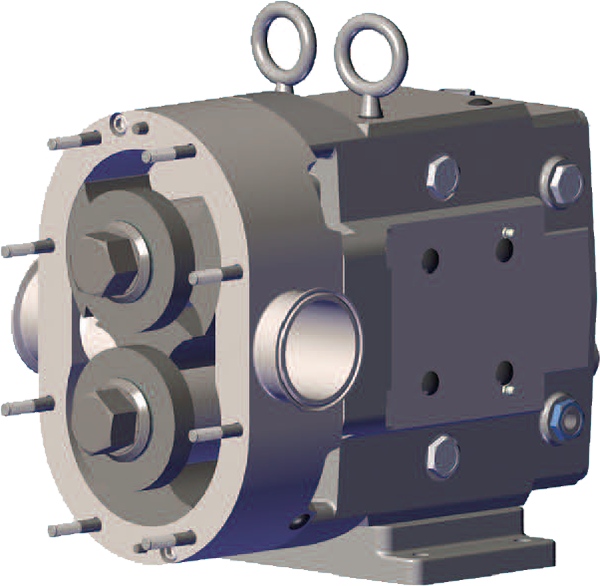

The ECP 2 Series external circumferential piston pump has been designed for use in sanitary and industrial applications. Its efficient design can ensure that it can be used for low viscosity and high viscosity fluids, high pressure conditions and low shear conditions.
- Optional drilled rotor and body hub for better CIP
- FDA approved elastomers
- Shaft is sealed from product zone (lip seal)
- Special alloy rotors allows tighter clearance running
- Stainless steel bearing frame standard for all models
- Stainless steel gear case standard for all models
- 17-4 PH single piece shaft standard
- Up to 34.5 bar pressure for ECP2-E-190 model
- Single or double mechanical seal
- Double tapered roller bearings
- Bidirectional flow
- 4 Way mounting of gear case, maximum flexibility
- Available in a variety of materials for pump body,cover and rotor
- Drive assembly available
- Stainless steel base plate
- SEW or Nord Reducer drive
- Optional movable installation
- Optional integrated transducer
- Free selection support

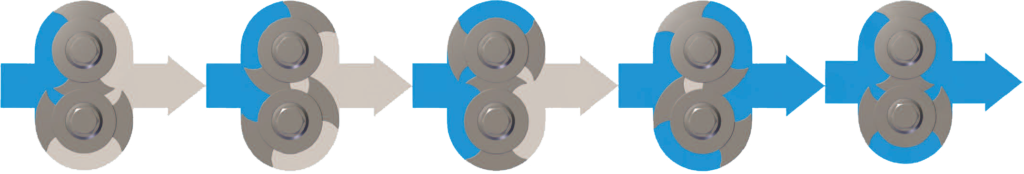

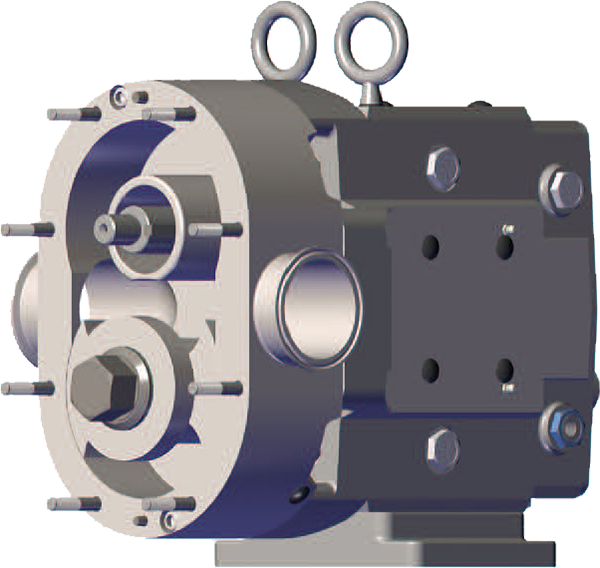

Operating Principle
Suction
Discharge
Applications
Dairy/Beverage
- Yogurt
- Cheese
- Cream
- Yeast
- Syrups
- Fruit Juice
Pharmaceutical
- Syrups
- Fat Emulsions
- Vaccines
- Eye Drops
- Blood Products
- Solutions
- Paste
Chemical
- Additives
- Polymers
- Solvents
Foods
- Confectionary
- Bakery
- Salad
- Food Paste
- Meat Products
- Prepared Foods
Personal Care &Cosmetics
- Lotions
- Face Creams
- Liquid Soaps
- Gels
- Flavours
Industria
- Inks
- Glue
- Resins & Paints
- Latex
- Lubricants
- Fuels

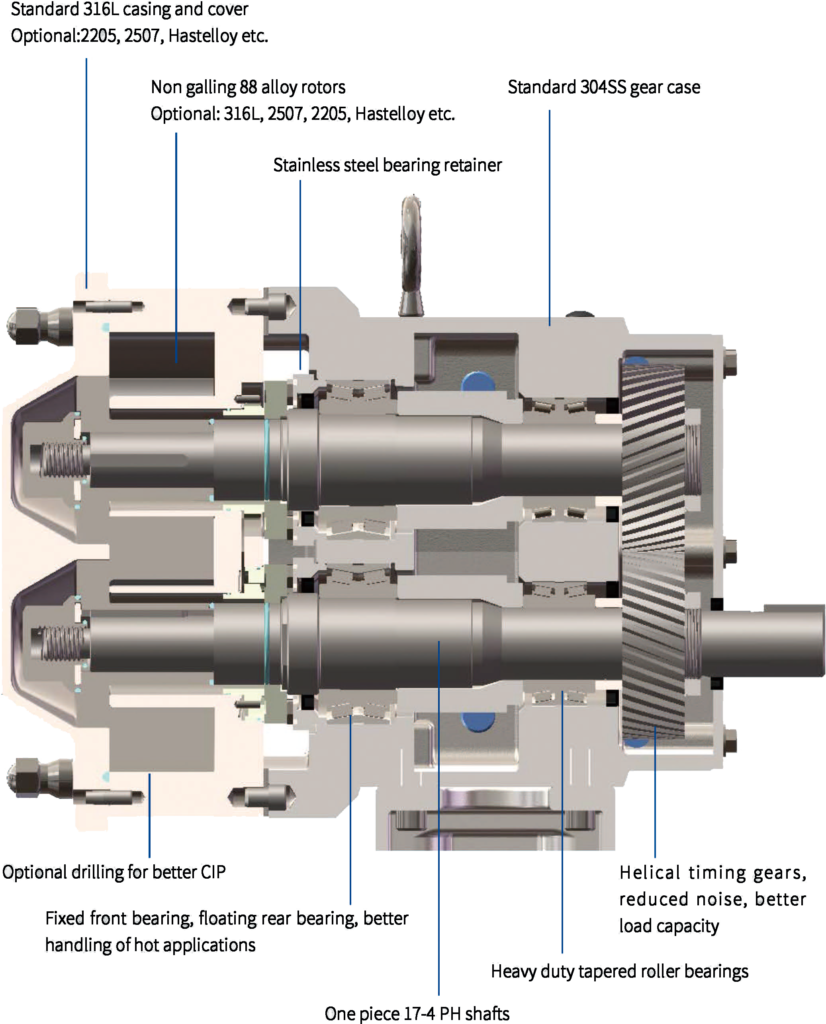

Features
Performance Data
| Model | Displacement per Revolution litre | Nominal Capacity m3/hr | Maximum Pressure bar | Maximum Speed rpm | Standard Ports inch | Optional Ports inch | Temperature Range ℃ |
|---|---|---|---|---|---|---|---|
| ECP2-A-003 ECP2-A-005 ECP2-A-011 | 0.0310 0.0540 0.1100 | 1.8 2.5 4.5 | 20.7 17.2 13.8 | 900 800 700 | 1.0 1.5 1.5 | 1.5 – 2.0 | 149 149 149 |
| ECP2-B-023 ECP2-B-029 | 0.2270 0.2880 | 8.2 10.4 | 17.2 10.5 | 600 600 | 1.5 2.0 | 2.0 – | 149 149 |
| ECP2-C-037 ECP2-C-058 ECP2-C-096 | 0.3710 0.5790 0.9580 | 13.2 20.1 34.1 | 31.0 20.7 13.8 | 600 600 600 | 2.0 2.5 3.0 | – 3.0 – | 149 149 149 |
| ECP2-D-144 ECP2-D-197 | 1.4380 1.9720 | 52.2 68.1 | 31.0 20.7 | 600 600 | 3.0 4.0 | – – | 149 149 |
| ECP2-E-190 ECP2-E-285 ECP2-E-416 | 1.9000 2.8470 4.1600 | 70.4 102 150 | 34.5 20.7 13.8 | 600 600 600 | 4.0 6.0 6.0 | – – – | 149 149 149 |

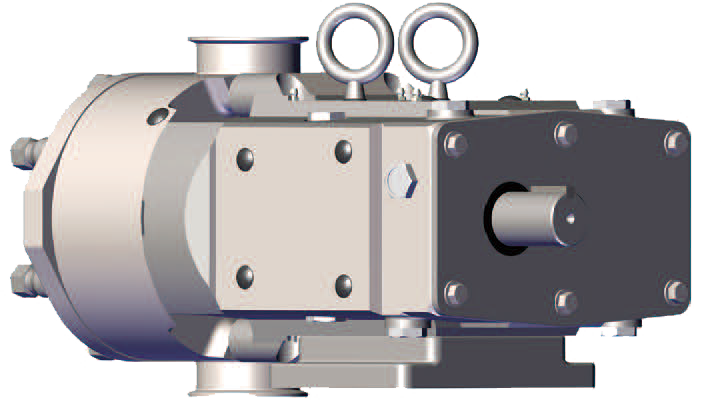

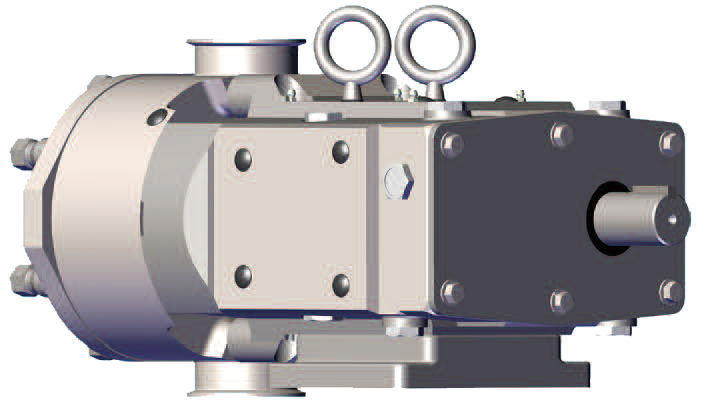

Four Way Mounting
Horizontal Top
Horizontal Lower
Vertical Right
Vertical Left
Options

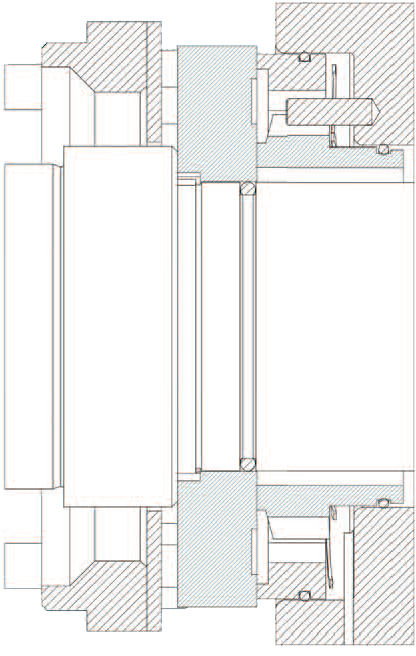

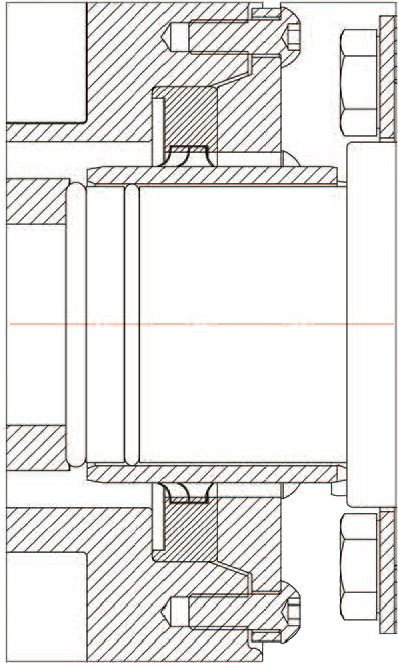

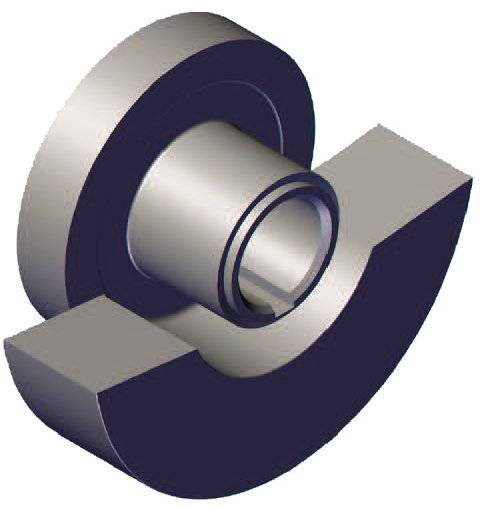

Single Mechanical Seal
Seal face available:
- Silicone carbide
- Chromium oxide
- Ceramic
- Carbon

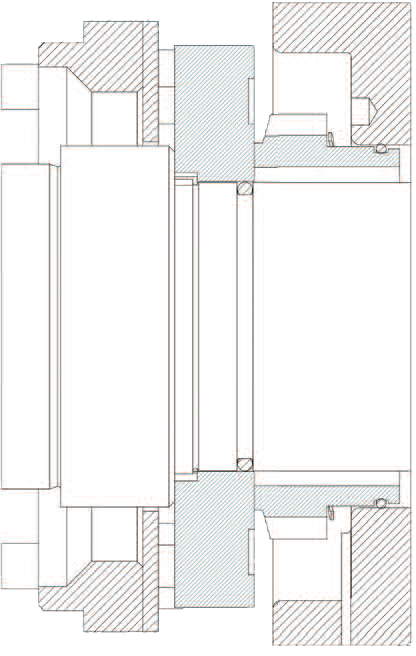

Double Mechanical Seal
Elastomer available:
- NBR
- FKM
- EPDM
- Silicone
- FFKM
- FEP encapsulated
- GF600S

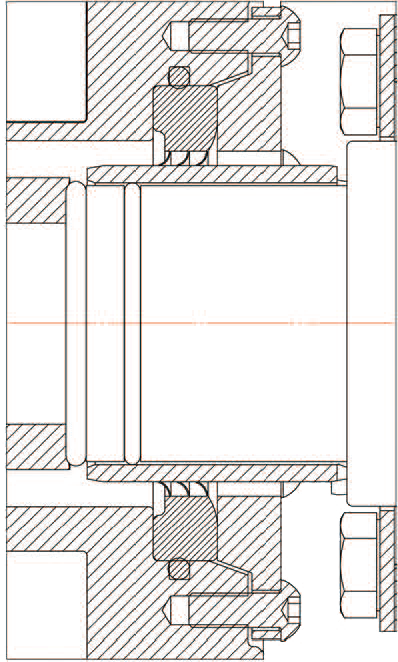

Sanitary Lip Seal
Sleeve available:
- Stainless Steel
- Ceramic
- Chrome Oxide
- Silicone Carbide Coated
Industrial Lip Seal

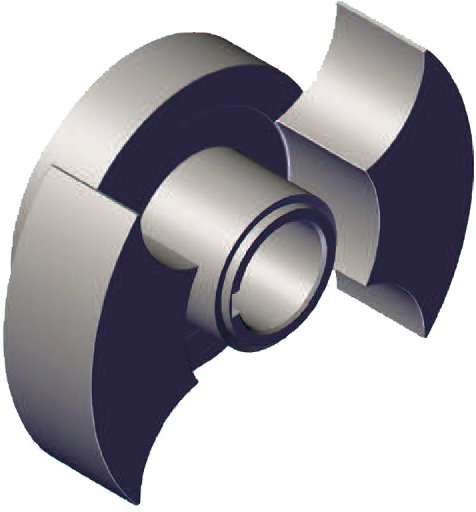

Double Wing Rotor:
For standard working conditions, four clearance available for selection:
- Standard Clearance
- Front Face Clearance
- Hot Clearance
- Extra Hot Clearance
Single Wing Rotor:
For solid laden products,reduce particle damage to the minimum

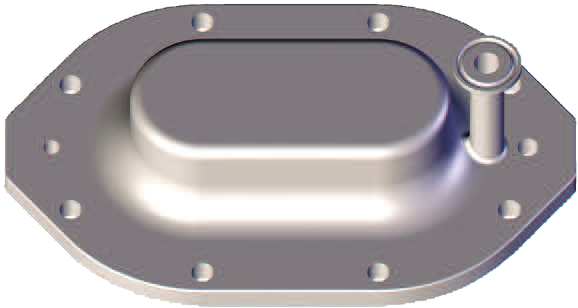

Pump Cover Drain at lowest possible point

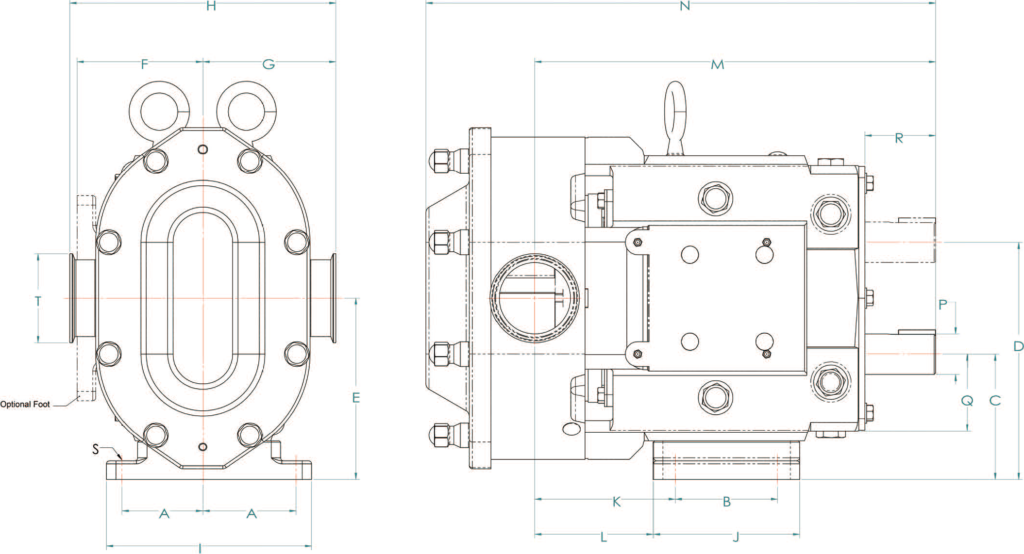

Dimensional Data
| Model | A mm | B mm | C mm | D mm | E mm | F mm | G mm | H mm | I mm | J mm | L mm | M mm | N mm | P mm | R mm | S mm | Key mm | Weight kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ECP2-A-003 | 49 | 59 | 74 | 140 | 107 | 74 | 89 | 177 | 121 | 95 | 50 | 244 | 297 | 22.23 | 51 | 9.5×8 | 0.1875 | 25 |
| ECP2-A-005 | 49 | 59 | 74 | 140 | 107 | 74 | 89 | 177 | 121 | 95 | 50 | 244 | 297 | 22.23 | 51 | 9.5×8 | 0.1875 | 25 |
| ECP2-A-011 | 49 | 59 | 74 | 140 | 107 | 74 | 89 | 177 | 121 | 95 | 55 | 250 | 314 | 22.23 | 51 | 9.5×8 | 0.1875 | 30 |
| ECP2-B-023 | 59 | 65 | 90 | 174 | 132 | 90 | 108 | 216 | 159 | 108 | 71 | 295 | 368 | 31.75 | 59 | 11×11 | 0.2500 | 60 |
| ECP2-B-029 | 59 | 65 | 90 | 174 | 132 | 90 | 108 | 216 | 159 | 108 | 76 | 305 | 378 | 31.75 | 59 | 11×11 | 0.2500 | 65 |
| ECP2-C-037 | 89 | 105 | 129 | 243 | 186 | 129 | 136 | 273 | 210 | 149 | 98 | 377 | 472 | 41.28 | 57 | 14×13 | 0.3750 | 125 |
| ECP2-C-058 | 89 | 105 | 129 | 243 | 186 | 129 | 136 | 273 | 210 | 149 | 105 | 385 | 486 | 41.28 | 57 | 14×13 | 0.3750 | 130 |
| ECP2-C-096 | 89 | 105 | 129 | 243 | 186 | 129 | 136 | 273 | 210 | 149 | 121 | 404 | 512 | 41.28 | 57 | 14×13 | 0.3750 | 140 |
| ECP2-D-144 | 95 | 184 | 162 | 314 | 238 | 162 | 166 | 332 | 216 | 229 | 88 | 464 | 591 | 50.80 | 70 | 14×13 | 0.5000 | 235 |
| ECP2-D-197 | 95 | 184 | 162 | 314 | 238 | 162 | 168 | 337 | 216 | 229 | 94 | 470 | 610 | 50.80 | 70 | 14×13 | 0.5000 | 270 |
| ECP2-E-190 | 133 | 203 | 175 | 353 | 264 | 175 | 187 | 374 | 305 | 295 | 88 | 539 | 688 | 60.33 | 102 | 16×15 | 0.6250 | 420 |
| ECP2-E-285 | 133 | 203 | 175 | 353 | 264 | 175 | 203 | 406 | 305 | 295 | 97 | 549 | 703 | 60.33 | 103 | 16×15 | 0.6250 | 395 |
| ECP2-E-416 | 133 | 203 | 175 | 353 | 264 | 175 | 216 | 432 | 305 | 295 | 115 | 567 | 841 | 60.33 | 103 | 16×15 | 0.6250 | 430 |
