Features
- Spring cam return
- 304SS gear case
- Integrated worm gear
- Splash lubrication
- No sealing, no leakage
- Manual stroke adjustment
- Variable frequency adjustment
- Suitable for hygienic and sterile applications
- Specially designed for industries such as food, beverages, pharmaceuticals,biotechnology, cosmetics, personal care
- CIP and SIP

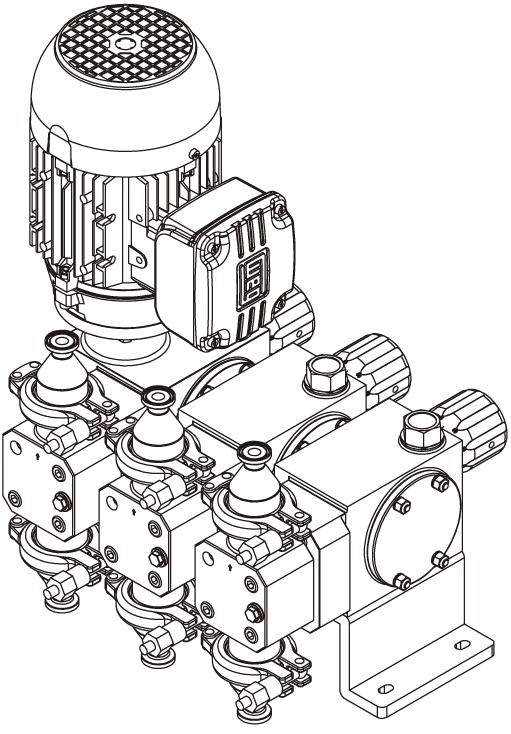

- Single pump head or up to five pump head design
- PTFE diaphragm (FDA)
- Optional pressure switch to monitor diaphragm status
- FDA elastomer material
- Design of sanitary check valves
- Pump head material standard 316 L, optional 904L, 2507 and others
- Surface finish 0.8 μm (optional 0.4 μm)
- Complete material reports
Diaphragm
- Multiplayer diaphragm
- Accuracy: ±1%
- 18 Month quality assurance
- High suction
- Leakage detection
Applications
- Enzyme metering adding
- Flavors metering adding
- CIP chemical on-line adding
- Syrup metering adding
- Food additive adding
- Pharmaceutical additive adding
Specifications and Model
| Model | Power kw | Flow Rate Liters/Hour | Pressure Bar | Port |
|---|---|---|---|---|
| MPMS0015 | 0.55 | Maxi. 15 | 20 | 1/2″ TC |
| MPMS0050 | 0.75 | Maxi. 50 | 10 | 1/2″ TC |
| MPMS0080 | 1.1 | Maxi. 80 | 6 | 1/2″ TC |
| MPMS0200 | 1.5 | Maxi. 200 | 12 | 1.0″ TC |
| MPMS0360 | 1.5 | Maxi. 360 | 8 | 1.0″ TC |
| MPMS0500 | 2.2 | Maxi. 500 | 5 | 1.0″ TC |
