Introduction

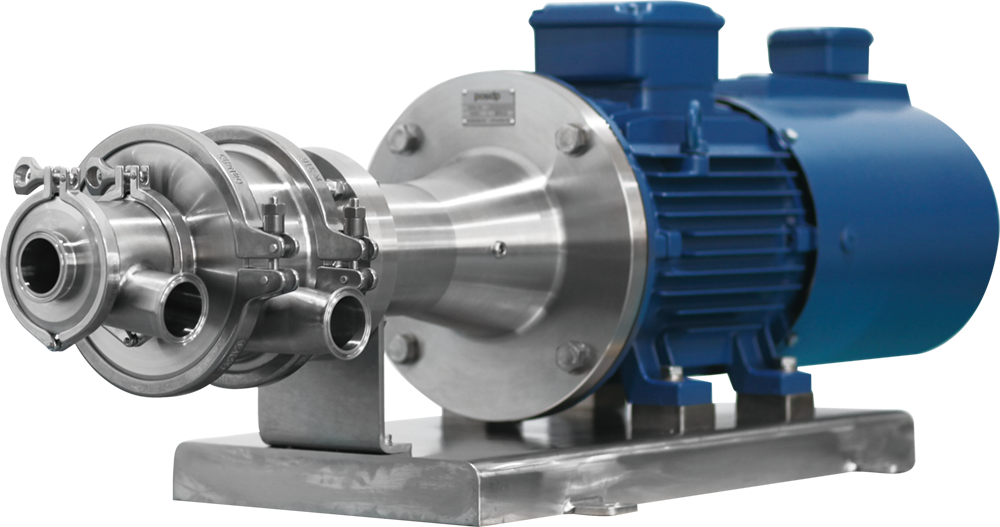

SPD powder dissolver-powder induction, dispersion and homogenization.

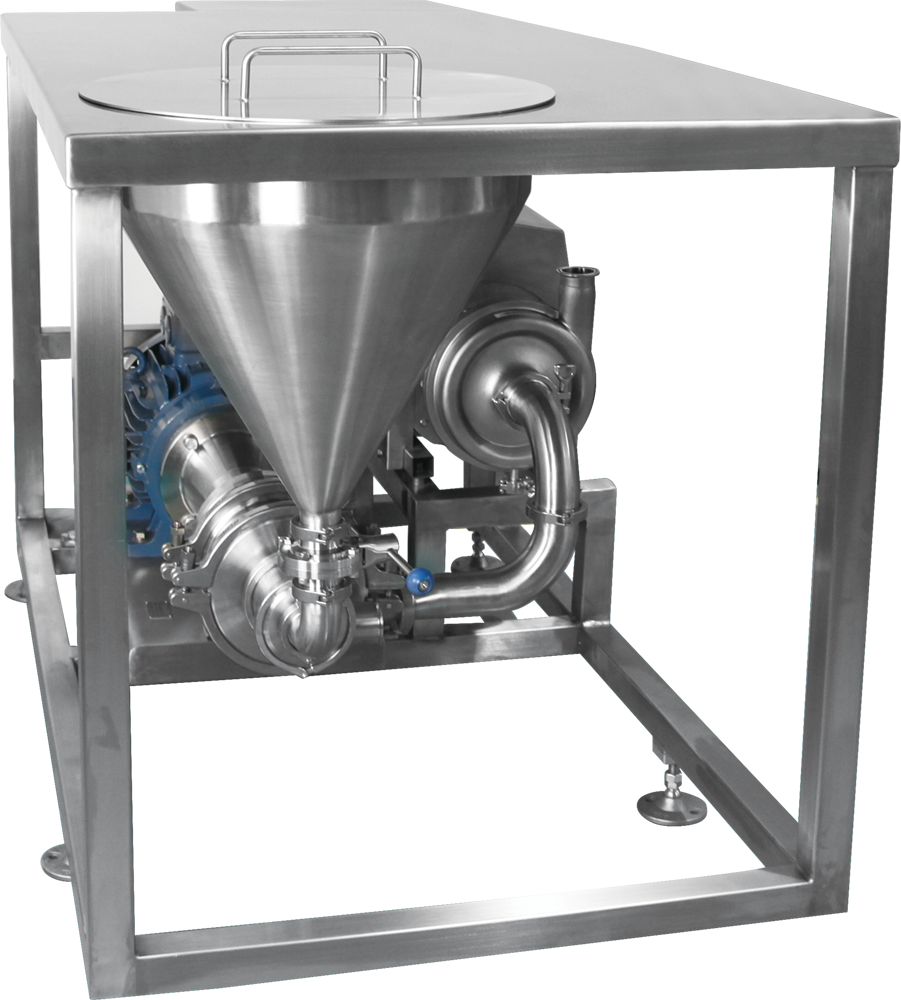

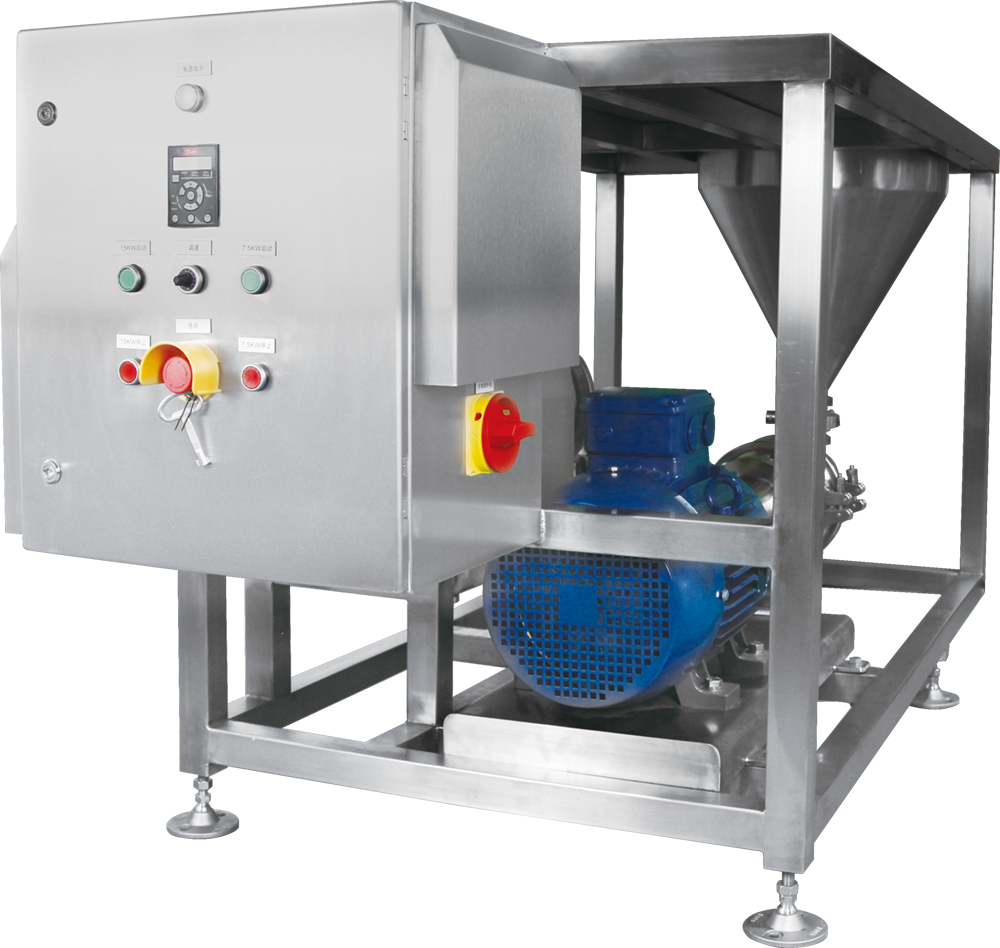

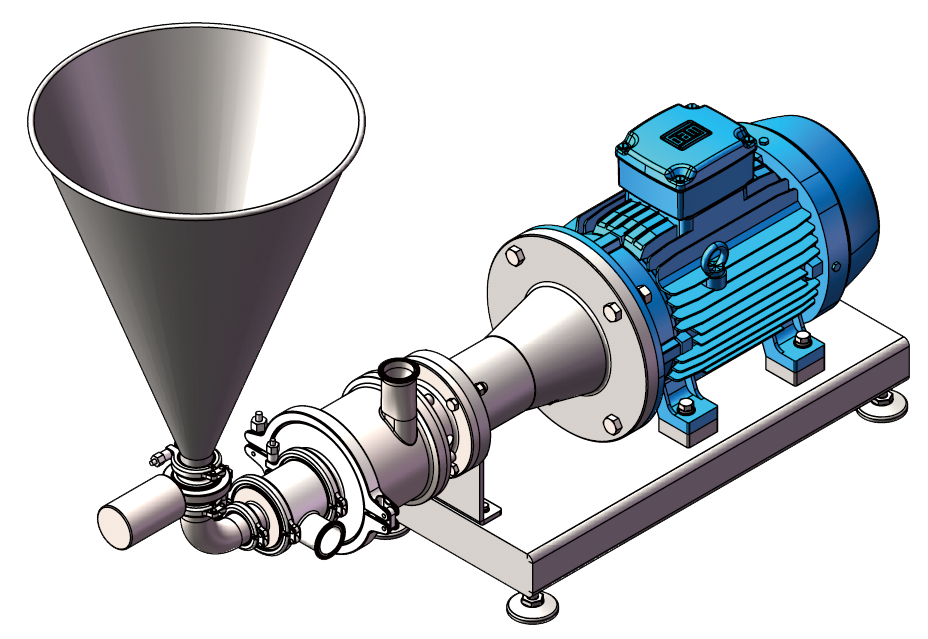

SPD can be used as stand alone machine. But most time, according to application requirements, like viscosity,discharge head, powder induction rate etc., we combine SPD dissolver with self-priming pump or centrifugal pump or lobe pump or twin screw pump and mounted them with hopper and control as a skid system. SPD dissolver can achieve mixing, accelerate dissolution, emulsification, homogenization, powder dispersion and optimize product texture.
Features
- Sanitary design
- 316L for wetted parts, optional 2205, 2507, Hastelloy etc.
- Rotor/stator are machined from solid bar
- SPD casing are machined from forged raw materials
- Different rows of rotor/stator combinations
- Different slot size for rotor/stator tooling
- Standard cartridge type double mechanical seal
- CIP and SIP capable
- Reduce particle size and other functions
- Consistent high-quality products across different production batches
- Reduce process time consumption
- Reduce foaming and air entrainment
- Eliminate waste of ingredients
- Rapid incorporation and wetting out of various gels
- 100% Dispersion of powders is guaranteed
- Supply multiple tanks with one unit
- Various inducers can be set to assist in critical suction conditions with high viscosity
Applications
The versatile combination of SPD with other pumps makes it suited for low and high viscosity application
- Reconstituted milk and yogurt
- Granulated (sugar/salt/phosphates)
- Cocoa powder
- Soy
- Cook Starches
- Various gums and gels
- Carbopol
- Xanthan
- Various Condiment
- Various food additives
- Personal care and cosmetics
- Pharmaceutical
- Insecticides, herbicides, fungicides
- Biodiesel
- Battery industry
Specifications and Model
| Model | Liquid Inlet | Powder Inlet | Liquid Outlet | Powder Induction Rate | Fluid Flow Rate |
|---|---|---|---|---|---|
| SPD10 | 1.5″ | 1.5″ | 1.5″ | Max. 1,500 kg/h | Max. 20 m3/h |
| SPD15 | 2.0″ | 2.0″ | 2.0″ | Max. 3,000 kg/h | Max. 30 m3/h |
| SPD25 | 3.0″ | 3.0″ | 2.5″ | Max. 5,000 kg/h | Max. 40 m3/h |
| SPD35 | 4.0″ | 3.0″ | 3.0″ | Max. 10,000 kg/h | Max. 50 m3/h |
