Introduction

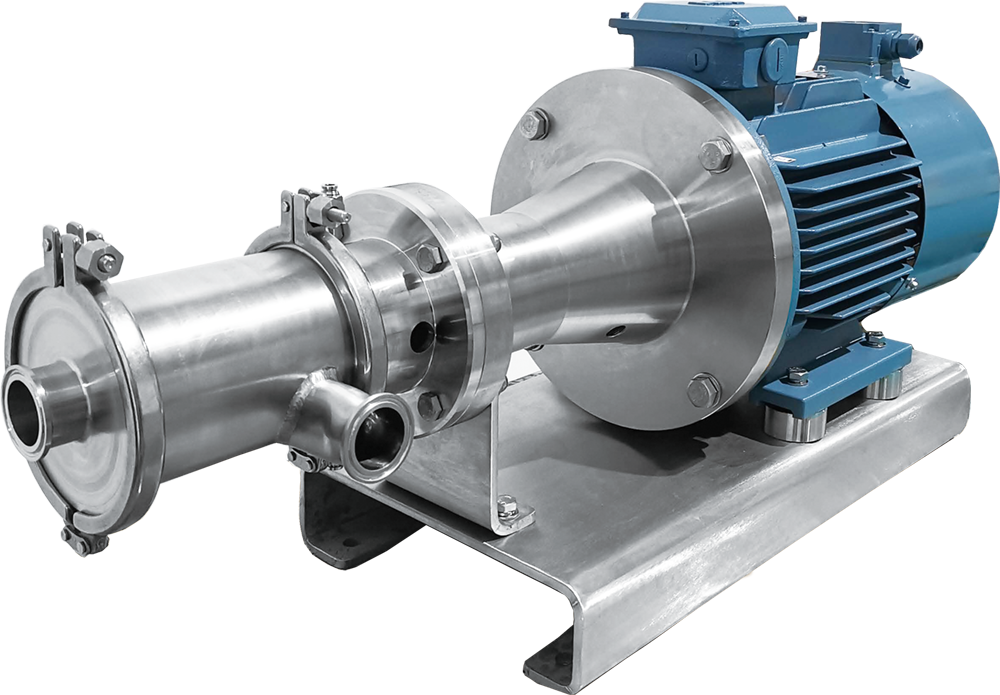

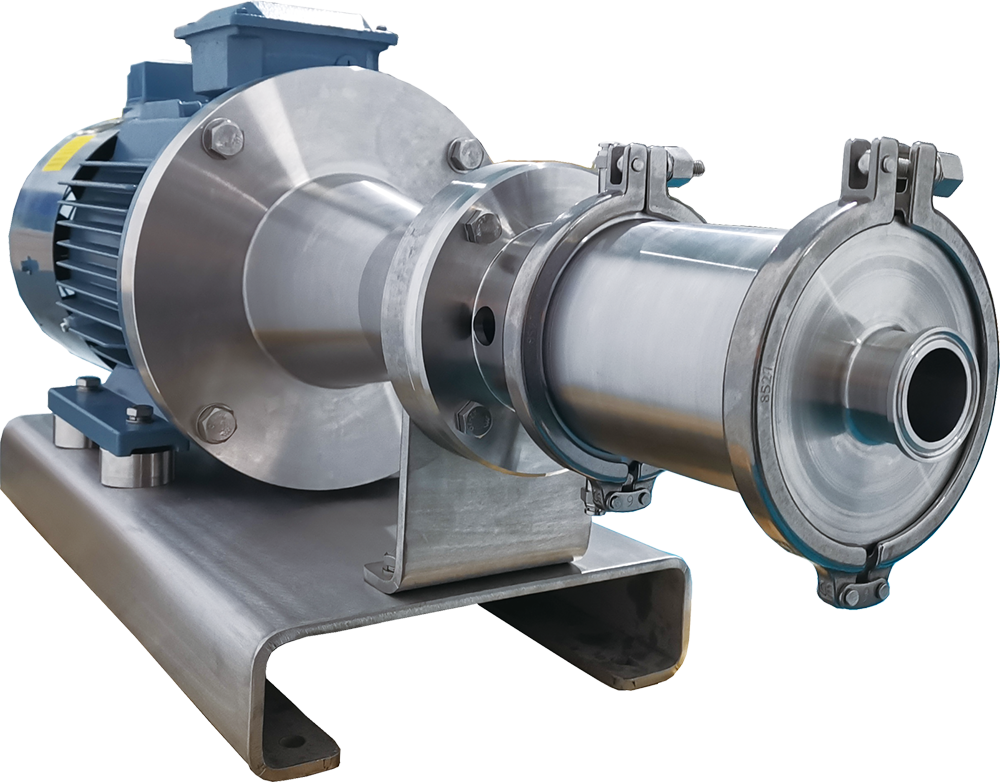

SPE series emulsifier adopts sanitary design and has single-stage or three-stage housing.
Through rich stator and rotor configuration, the particle size distribution of liquid materials can be more centralized, and the D90 of most products can be as low as 1-5 μm.
Features
- Depending on models, rotor speed range from 8000 rpm to 1200 rpm

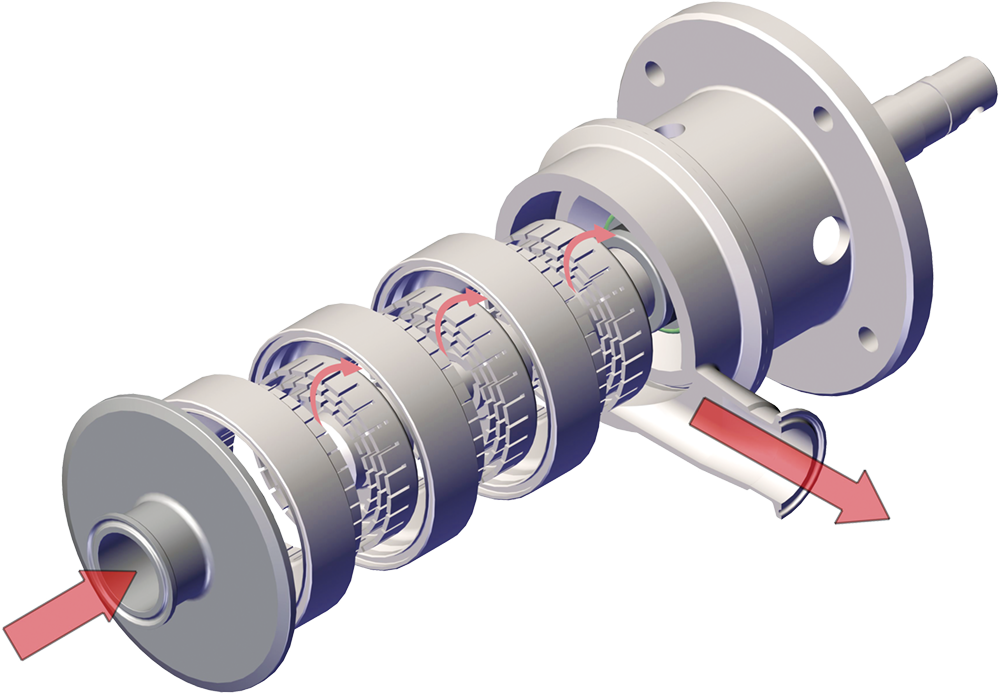

- It can be equipped with single-stage to three-stage stator and rotor, with three rows of stator and rotor in each stage
- Through the multi-layer slotted stator and rotor, the accurate control of shear and rheological properties is realized
- Dozens of different stator and rotor combinations meet different process requirements
- Through the frequency converter, the accurate required shear rate and peripheral speed can be realized
- Perfect amplification from laboratory research and development to production equipment
- Standard cartridge type double mechanical seal, single mechanical seal can be selected
- The rubber material complies with FDA, EPDM, Viton, FFKM are optional
- More consistent products can be obtained through on-line one-time process, with good reproducibility and greatly reduced batch time
- Improve the particle size, texture, organizational structure, taste, texture and smoothness of the product
Applications
- Homogenization, emulsification, dispersion, depolymerization and wet grinding are realized through slotted stator and rotor
- Uniform high shear to achieve homogenization of various liquid materials
- Widely used in pharmaceutical, food, chemical, paint and other process industries
- Fat emulsion pre emulsification
- API blending
- Cosmetic emulsification
- F or Yogurt, eliminate stratification of yogurt, molecules are extended and reorganized
- Salad dressing preparation, mayonnaise processing and prepared foods manufacturing
- In-line Adding, blending and homogenization of various ingredients
- CIPable after production finished, no COP needed
- Particle size analysis provided
Specifications and Model
| Model | Power Range | Capacity | Speed | Stage | Port | Installation |
|---|---|---|---|---|---|---|
| SPE03 | Max.2.2kw | Max.1 m3/hr | 8000 rpm | Single Stage | 1.0″ | Horizontal |
| SPE05 | Max.2.2kw | Max.3 m3/hr | 6000 rpm | Single Stage | 1.0″ | Vertical |
| SPE06 | Max.7.5kw | Max.6 m3/hr | 6000 rpm | Single or Three | 1.5″ | Horizontal+Vertical |
| SPE15 | Max.18.5kw | Max.12 m3/hr | 3600 rpm | Single or Three | 2.0″ | Horizontal+Vertical |
| SPE30 | Max.45kw | Max.30 m3/hr | 1800 rpm | Single or Three | 3.0″ | Horizontal+Vertical |
| SPE50 | Max.75kw | Max.80 m3/hr | 1200 rpm | Single or Three | 6.0″ | Horizontal |
