Introduction
The ECP 1 Series external circumferential piston pump has been designed for use in COP conditions. With maximum pressure up to 14bar, Its splined shaft design allows for quick disassembly.

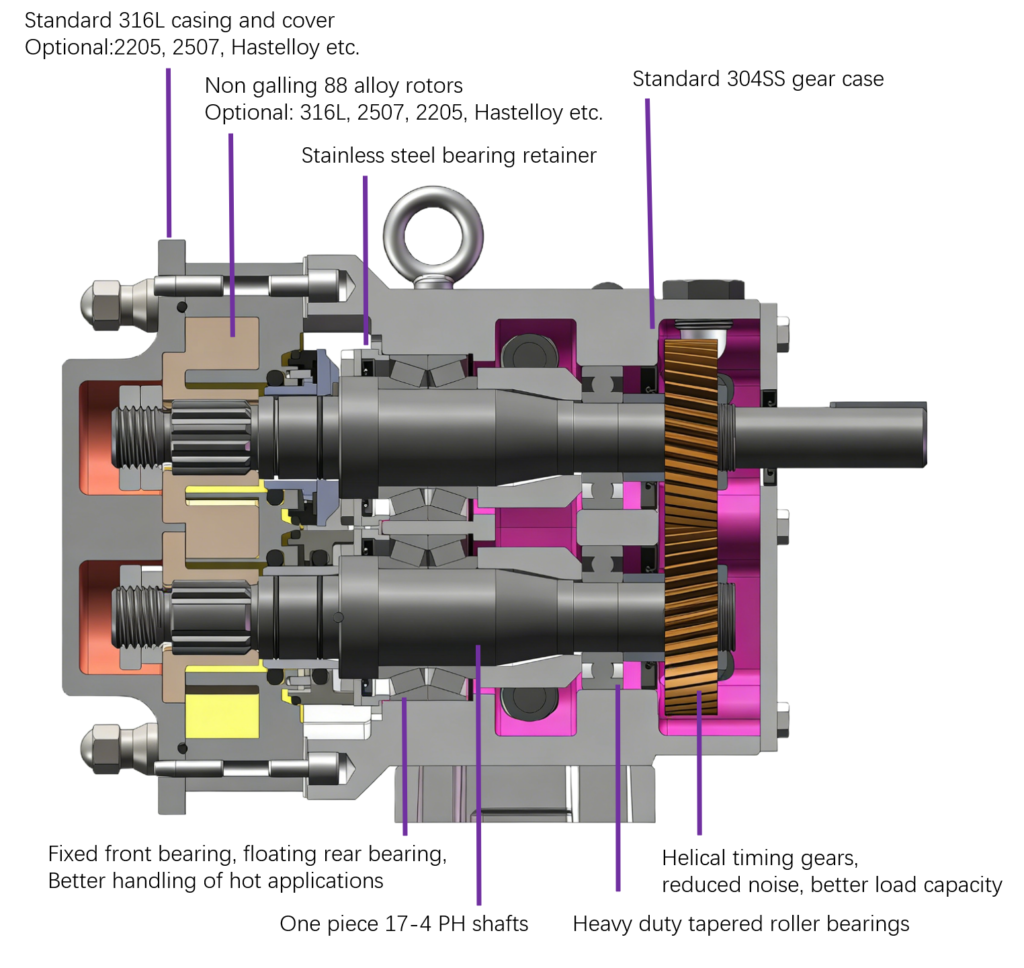

Features
- Same gear case as ECP2 series, made of 304ss
- Splined shaft
- FDA approved elastomers
- Shaft is sealed from product zone (lip seal)

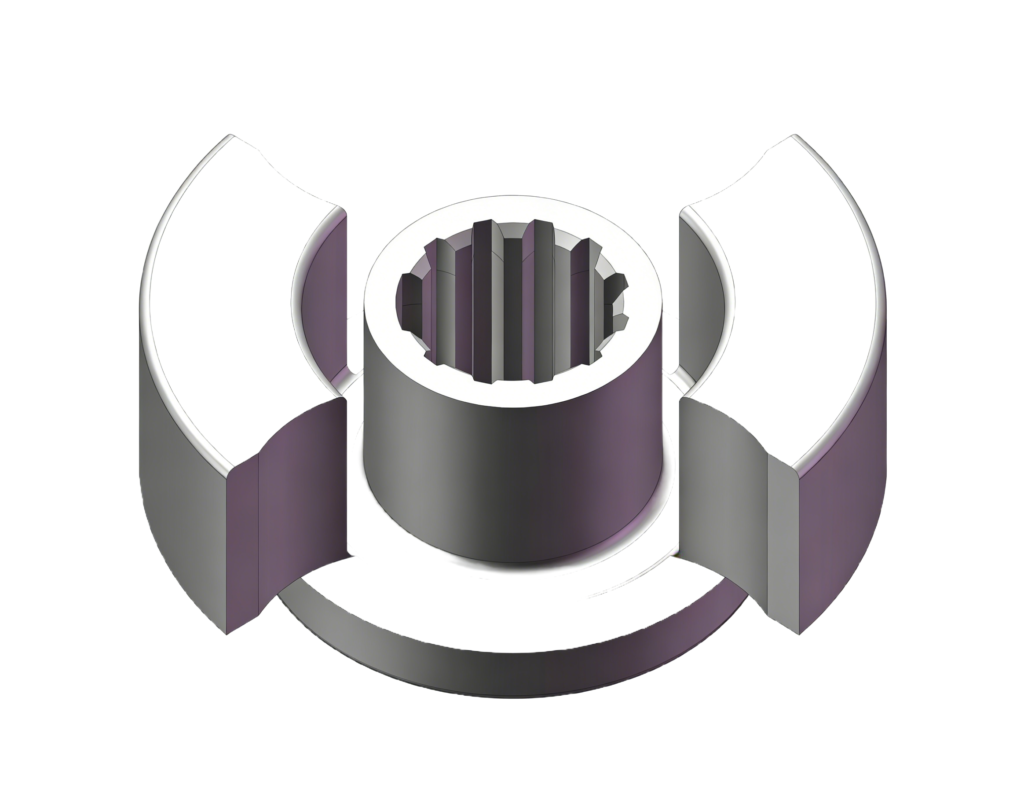

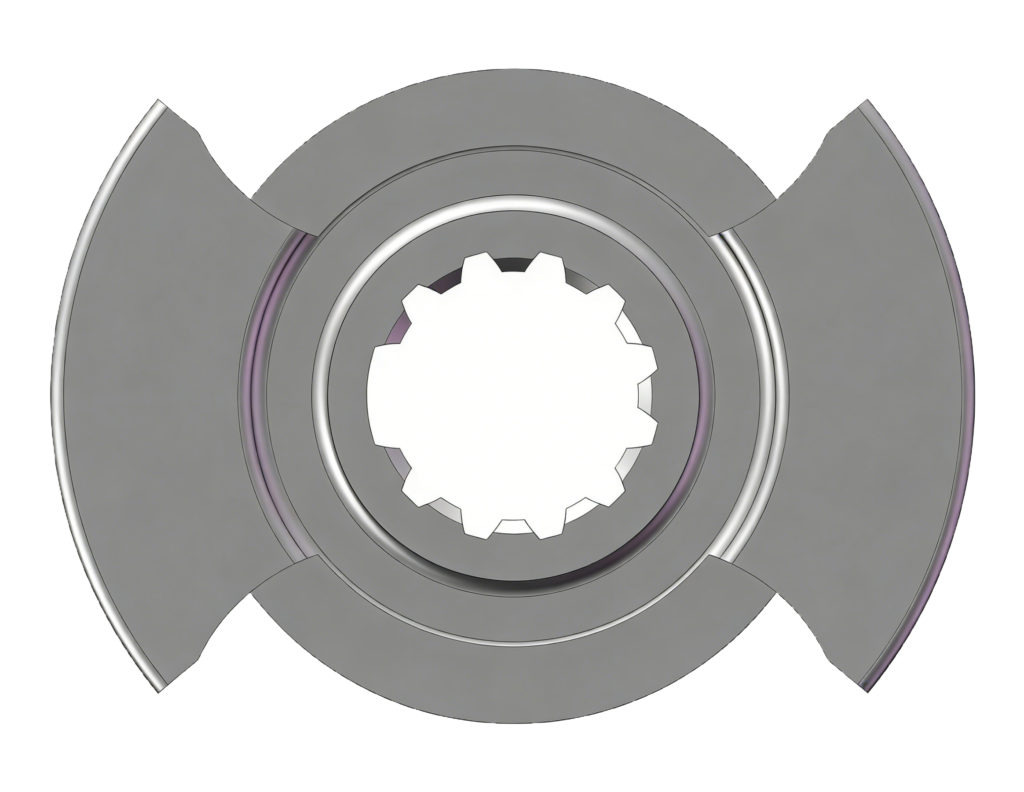

- Special alloy rotors allows tighter clearance running
- Stainless steel bearing frame standard for all models
- Stainless steel gear case standard for all models
- 17-4 PH single piece shaft standard
- Five seal types, single mechanical seal, double mechanical seal, single o-ring seal, double o-ring seal, lip seal
- Double tapered roller bearings
- Bidirectional flow
- 4 Way mounting of gear case, maximum flexibility
- Available in a variety of materials for pump body,cover and rotor
- Drive assembly available
- Stainless steel base plate
- SEW or Nord Reducer drive
- Optional movable installation
- Optional integrated transducer
- Free selection support
Performance Data
| Model | Displacement per Revolution litre | Nominal Capacity m3/hr | Maximum Pressure bar | Maximum Speed rpm | Standard Ports inch | Optional Ports inch | Temperature Range ℃ |
|---|---|---|---|---|---|---|---|
| ECP1-A-003 ECP1-A-005 ECP1-A-011 | 0.031 0.054 0.11 | 1.6 2.3 3.9 | 14 14 14 | 800 700 600 | 1 1.5 1.5 | 1.5 – 2 | 149 149 149 |
| ECP1-B-023 ECP1-B-029 | 0.227 0.288 | 8.2 10.4 | 14 14 | 600 600 | 1.5 2 | 2 – | 149 149 |
| ECP1-C-037 ECP1-C-058 ECP1-C-096 | 0.371 0.579 0.961 | 13.2 20.9 34.5 | 14 14 14 | 600 600 600 | 2 2.5 3 | – 3 – | 149 149 149 |
| ECP1-D-144 ECP1-D-197 | 1.438 1.976 | 52.2 71.1 | 14 14 | 600 600 | 3 4 | – – | 149 149 |
| ECP1-E-285 ECP1-E-233A | 2.854 2.332 | 103 84 | 14 15 | 600 600 | 6 6 | – – | 149 149 |
