Introduction

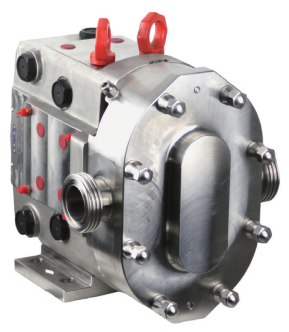

Both SP and LP series are rotary lobe pump type. Reliable, efficient, and easy-to-maintain SP2 series rotary lobe pump is suitable for various industries, including food, beverage, dairy, pharmaceuticals, and personal care etc.
Features
- Same gear case as ECP series, made of 304ss
- Compared to ECP series, easier cleaning, better CIP
- Scimitar rotor design provides extremely low shear to protect sensitive
- products and ensure superior performance
- Self-draining standard with vertical installation
- Robust and reliable construction
- Non-contact rotor reduces wear, longer service time
- Ease of maintenance
- Economic positioning
- Handle up to 1,000,000 cps fluids
- Flow rates up to 126 m3/h
- Pressure up to 16 bar, higher version possible
- Jacketed cover for temperature control
- Relief pump cover for quick pressure relief
Modularity and Flexibility
- Rich ports standard: Tri-clamp, DIN, SMS, RJT, Bevel seat, Flange with
- steam barrier etc.
- Seal type: SM, DM, SO, DO, Lip seal etc.
- Seal material: Silicone carbide, Carbon, Ceramic, Tungsten carbide etc.
- Elastomers: EPDM, FKM, NBR, Silicone, FFKM etc.
- Gear case: 304ss material, Four-way mounting facilitates system layout and piping connection
- Identical installation dimensions for SP2, LP3 and LP4
Performance Data
| Model | Displacement l/rev. | Max Capacity m³/h | Max Pressure bar | Max Speed rpm | Ports inch | Temperature℃ |
|---|---|---|---|---|---|---|
| SP2-A2 | 0.08 | 4.8 | 16 | 1000 | 1.5″ | to 149°C |
| SP2-A3 | 0.15 | 9.0 | 12 | 1000 | 1.5″ | to 149°C |
| SP2-B1 SP2-B2 | 0.26 0.33 | 15.6 17.8 | 16 12 | 1000 900 | 1.5″ 2.0″ | to 149°C to 149°C |
| SP2-C2 | 0.75 | 36.0 | 16 | 800 | 2.5″ | to 149°C |
| SP2-C3 | 1.15 | 48.3 | 12 | 700 | 3.0″ | to 149°C |
| SP2-D1 | 1.55 | 55.8 | 16 | 600 | 3.0″ | to 149°C |
| SP2-D2 | 2.25 | 81.0 | 12 | 600 | 4.0″ | to 149°C |
| SP2-E2 | 3.5 | 126.0 | 12 | 600 | 6.0″ | to 149°C |
